SKU: AN1703D018

Anselmi - Concealed Hinges

Frais d'expédition calculés à la caisse.
Order time

In Stock - Ships same day in most cases

Special Order - Typically we receive these orders in 5 business days, once received, we ship it to you.

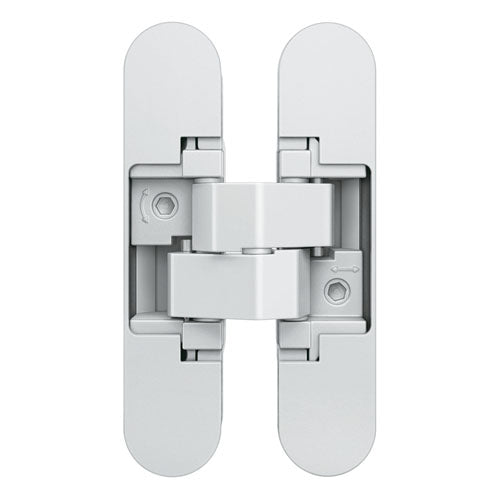

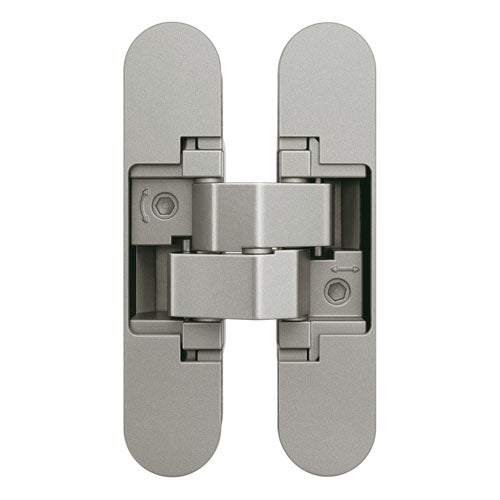

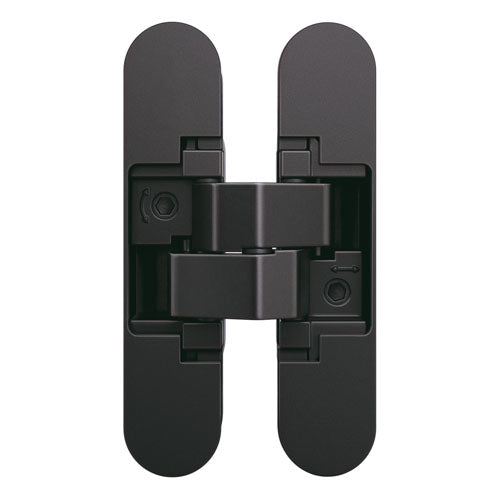

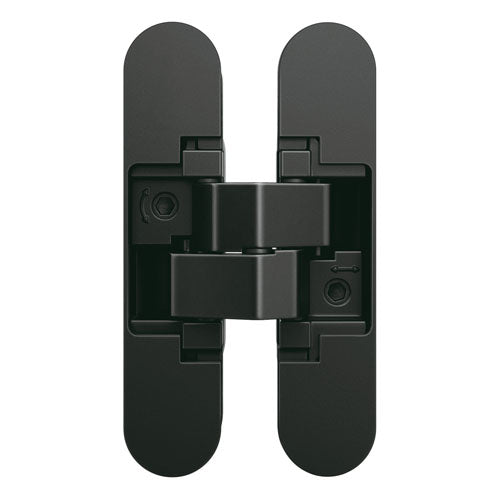

The extensive range of ANSELMI hinges offers high quality products for light interior doors. The concealed hinge system is suitable for interior residential doors as well as for internal doors up to 60 kg and is available in several model versions. The hinge system is three-dimensionally adjustable and guarantees a long lasting, maintenance-free operation of the door and is available 4 great finishes.

Load capacity
60,0 kg
Overall length
110,0 mm
Width (door part)
24,0 mm
Width (frame part)
24,0 mm
Cutter diameter
16,0 mm
Collar ring diameter
27,0 mm
Opening angle
180°

Suitable for

Type of door leaf:
timber
Rebate
unrebated
Type of frame:
aluminum frame, blind frame, block frame, casing frame

Note

The load capacity mentioned above refers to the use of 2 hinges per door leaf (900 x 2100 mm).

Suggested screws:
Frame side: Countersunk head screws DIN 7505 A, Diameter 4,5 mm
Door side: Pan head screws DIN 7505 B, Diameter 4,5 mm

Alternatively, the routing can be carried out with a cutter diameter of 14,0 mm and a collar ring diameter of 25,0 mm.
