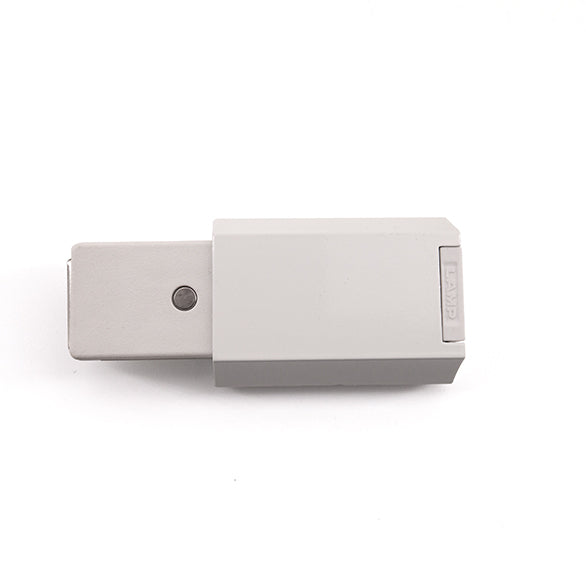

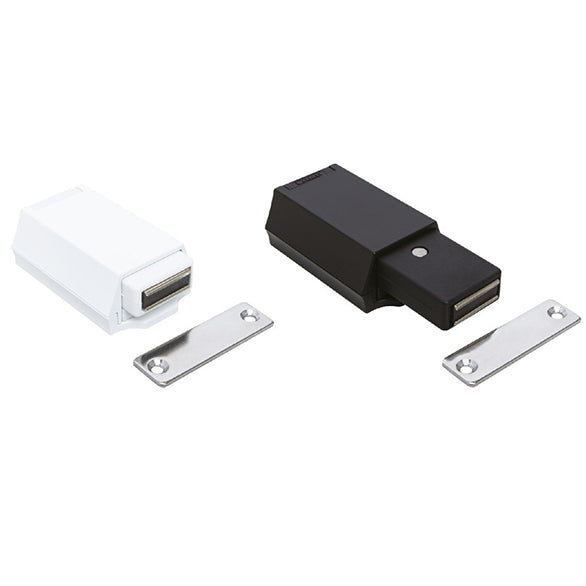

Eliminate Door Handles with This Heavy-Duty Door Touch Latch; Sugatsune's ML-ZN80-WT Push-to-Open Mechanism offers a minimalist style for heavy doors. This latch is suitable for any interior door, from standard rooms and closets to pantries and flush doors. Plus, the hidden mounting screw design simplifies installation. For heavy duty use, the ML-ZN80 Series provides 11 lbs of magnetic push force, plus it successfully passed a 100,000 open/close cycle test. Made of zinc alloy, it's highly durable and provides easy access with no manual dexterity needed. Get the desired "hidden door" look with the HES3D-E190 Series of 3-way adjustable concealed hinges.
Dimensions |
87 × 39 mm |
Includes Strike Plate |
yes
|
Magnetic Force (kg) |
3
|
Magnetic Force (lbs) |
6.6
|
Push Force (kg) |
5
|
Push Force (lbs) |
11
|
Requires Strike Plate |
yes
|
Max. Door Height (mm) |
2440
|
Max. Door Height (inch) |
96-1/6
|
Max. Door Width (mm) |
915
|
Max. Door Width (inch) |
36
|
Max. Door Weight (kg) |
125
|
Max. Door Weight (lbs) |
275
|
Overall Length (mm) |
Width (mm) |
Height (mm) |
Weight (g) |
87 mm |
|
39 mm |
|
Components
Component |
Material |
Finish |
Body |
Zinc Alloy |
White |
Mounting Plate |
Zinc Alloy |
White |
Latch |
Plastic (PA) |
White |
Magnet |
Ferrite |
Plain |
Strike Plate |
Stainless Steel |
Polished |
