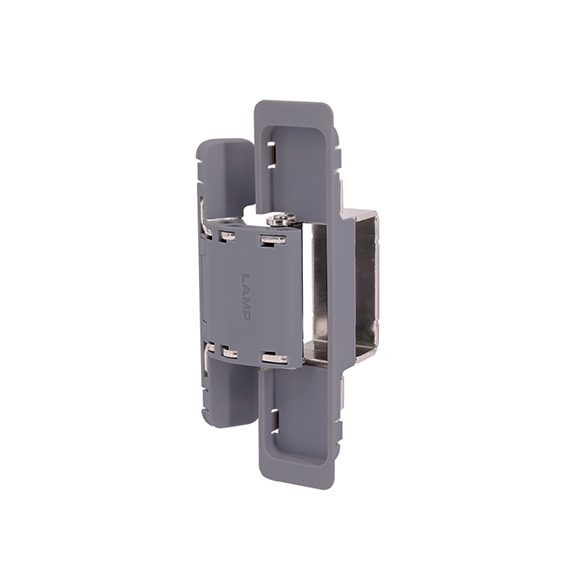

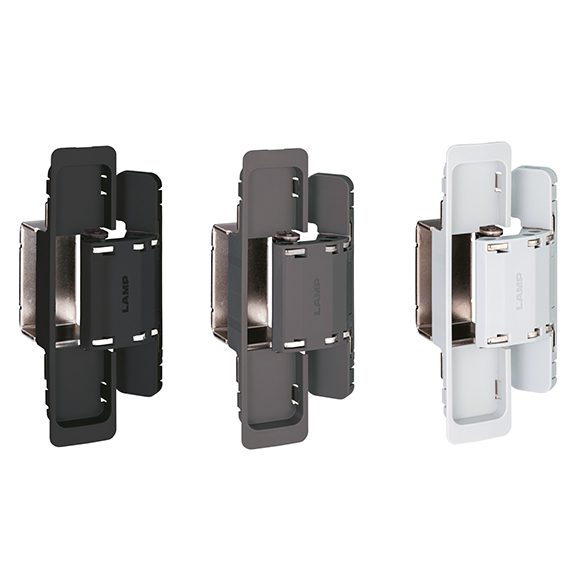

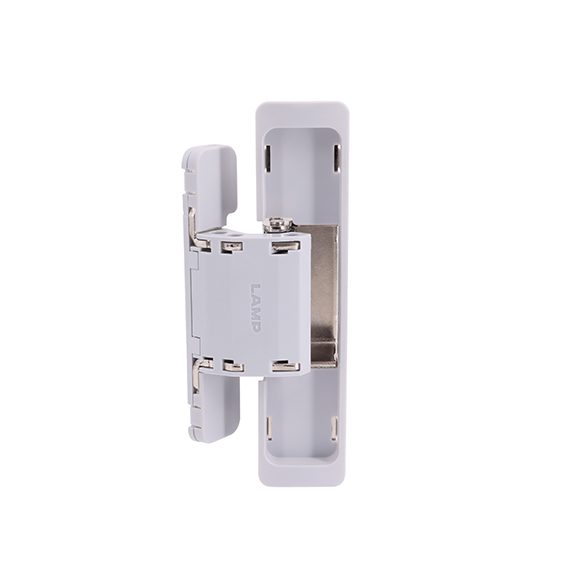

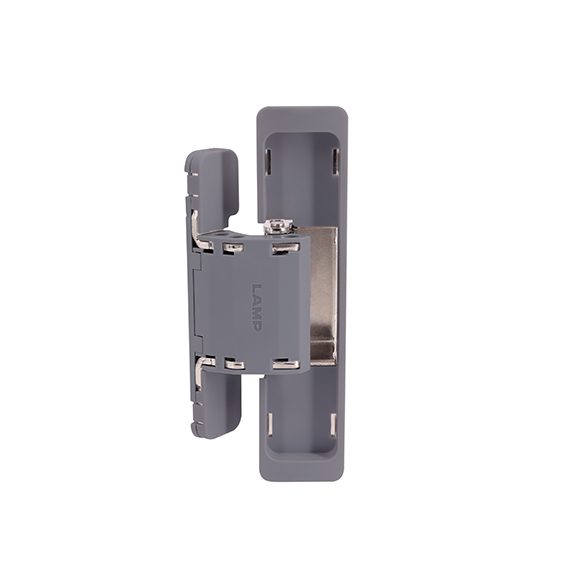

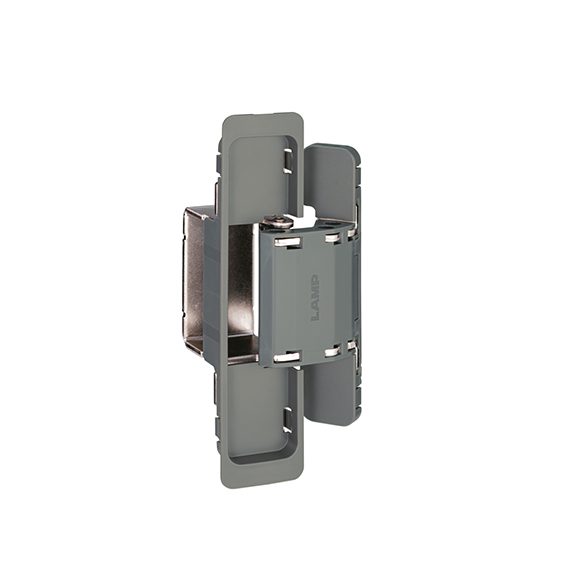

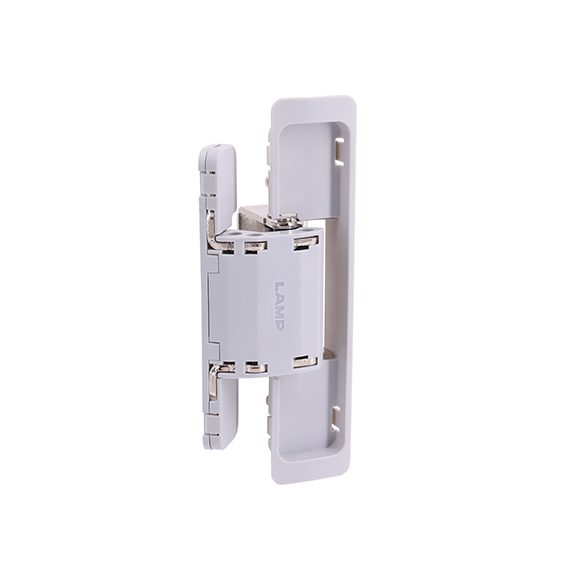

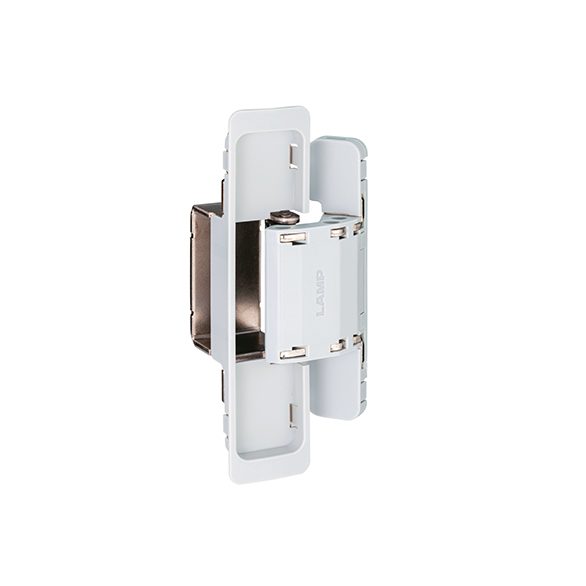

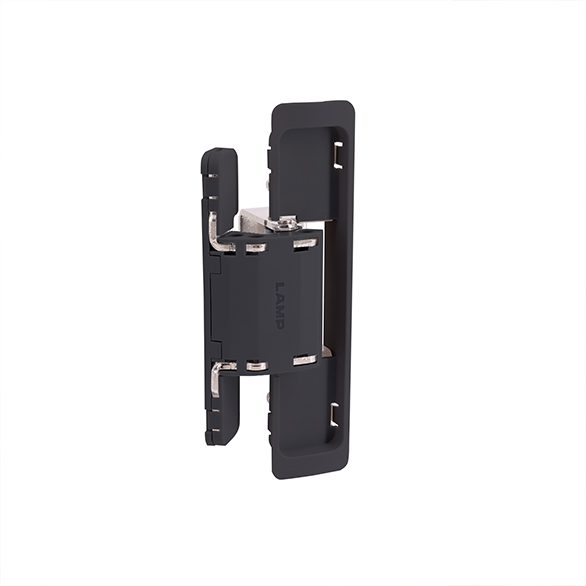

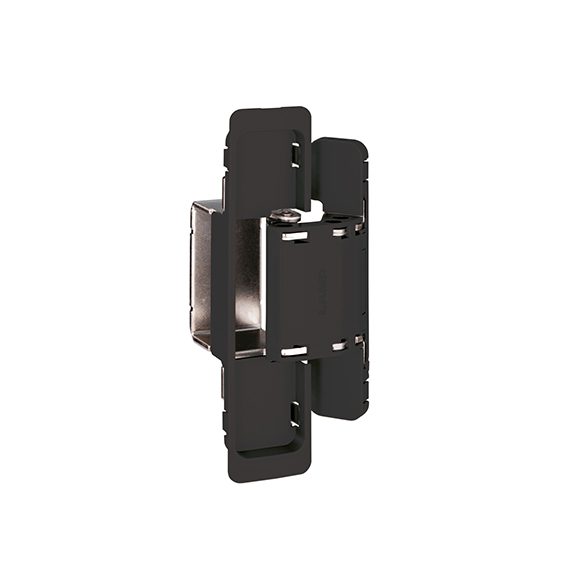

Sugatsune Canada, Inc. Sugatsune - 3 Way Adjustable Concealed Hinge (Surface Mount) HES2S-140-A125-BL | Concealed Hinge

*Sold per hinge*

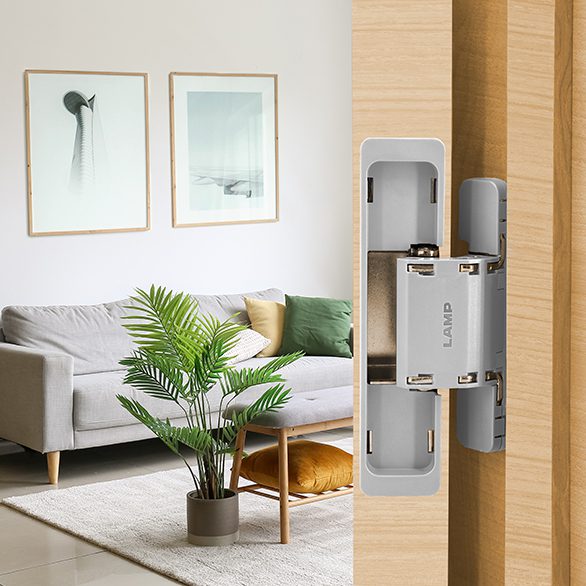

Surface mount on the door frame enables easy installation (no frame side mortising). Recommended door thickness is 1-9/16” (40 mm) or more.
The opening angle is limited to 125°. Door stopper or angle limiter is required to prevent breakage of the hinges and failure of the door.
The hinge cannot be divided between the door and the frame.
Durability: successfully passed 300,000 open/close private cycles

Weight	272 g

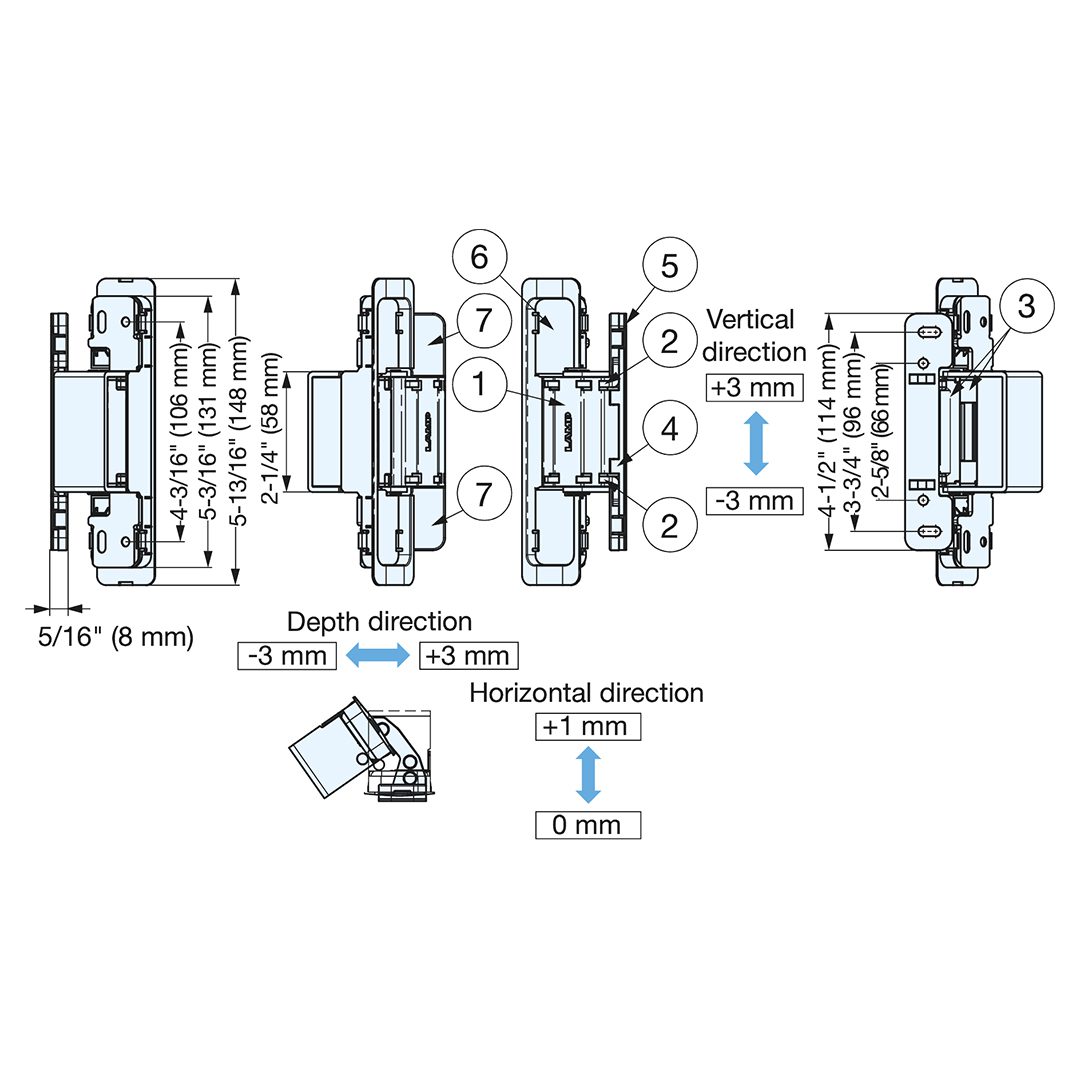

Dimensions	30 × 148 mm
Door Max. Width (inch)	35-7/16"
Max. Door Width (mm)	900
Max. Door Height (inch)	106-5/16"
Max. Door Height (mm)	2700
Max. Door Weight (lbs)	110 lbs/ 2pcs
Max. Door Weight (kg)	65 kg/ 2 pcs
Opening Angle	125º

Overall Length (mm)	Width (mm)	Height (mm)	Weight (g)
–	30 mm	148 mm	272 g

Components

Component	Material	Finish
Body	POM	Black
Base Plate	SPCC	Nickel
Arm	Zinc Alloy	Chemical Treatment
Distance Plate	PBT	Finish Match
Horizontal Adjustment Plate	POM	Finish Match
Socket Cover	ABS	Finish Match
Base Plate Cover	ABS	Finish Match

$80.00
